Advanced Topics

We introduce some advanced usage in this document. In the following content, all equation numbers refer to BDM Physics unless specified otherwise. First, import the necessary packages:

# import python packages
import numpy as np
import ipyparallel as ipp

# import plotting package
import matplotlib.pyplot as plt
import matplotlib.colors as mcolors
# uncomment the following two lines if you have a Hi-DPI monitor and wish to have a better figure resolution
# %matplotlib inline
# %config InlineBackend.figure_format='retina'

# import snorer
import snorer as sn
print(f'Current version of snorer: {sn.__version__}')

Current version of snorer: 2.0.0

Distribution across the celestial sphere

We draw how supernova-neutrino-boosted dark matter (SN\(\nu\) BDM) distributes across the sky.

We use Cassiopeia A (Cas A) to be our SN in this example. Its \(\alpha\) and \(\delta\) are 23h23m24s and 58d49m00s respectively and \(R_s\approx 3.5\) kpc. Hence, we obtain the off-center angle \(\beta\) and its galactic coordinate by

casA_beta,l_sn,b_sn = sn.equatorial_to_beta('23h23m24s','58d49m00s')
print(f"The off-center angle for Cas A approximates {casA_beta:.3f} rad.")

The off-center angle for Cas A approximates 1.950 rad.

To evaluate the distribution across the sky, it is equivalent to draw

\[ \begin{equation} \left.\frac{d\Phi_\chi}{dT_\chi d\Omega} = \tau_s \mathcal{J} j_\chi\right|_{t=\frac{d}{c}+\frac{\ell}{v_\chi}-t_\nu} \end{equation} \]

on the celestial sphere spanned by the galactic coordinate \(\ell\) and \(b\).

The corresponding function in snorer is sn.differential_flux with 10 parameters. The first seven t, Tx, mx, theta, phi, Rs, beta are mandatory and the last three Re = 8.5, sigxv0 = 1e-45 and is_spike = False are optional. Note that theta and phi are the zenith and azimuthal angles, cf. Fig. 1 in BDM Physics.

scheme
Figure 1. Cas A and its location \((\ell_s,b_s)\) on the galactic coordinate. Another point \((\ell_0,b_0)\) is also labeled.

Suppose Cas A locates at \((\ell_s,b_s)\) on the galactic coordinate shown in Fig. 1, another point \((\ell_0,b_0)\) that is distant from Cas A by \(\theta\) and rotates by \(\varphi\) azimuthally. We can determined them through

\[ \begin{equation} \theta = \sqrt{\ell^{\prime 2}+b^{\prime 2}},\quad {\rm and} \quad \varphi= \tan^{-1}\left(\frac{\ell^\prime}{b^\prime}\right) \end{equation} \]

where

\[ \begin{equation} \ell^\prime = \ell_0 - \ell_s\quad{\rm and}\quad b^\prime = b_0-b_s. \end{equation} \]

With \(\theta\) and \(\varphi\), we further apply both to sn.differential_flux to get the differential flux.

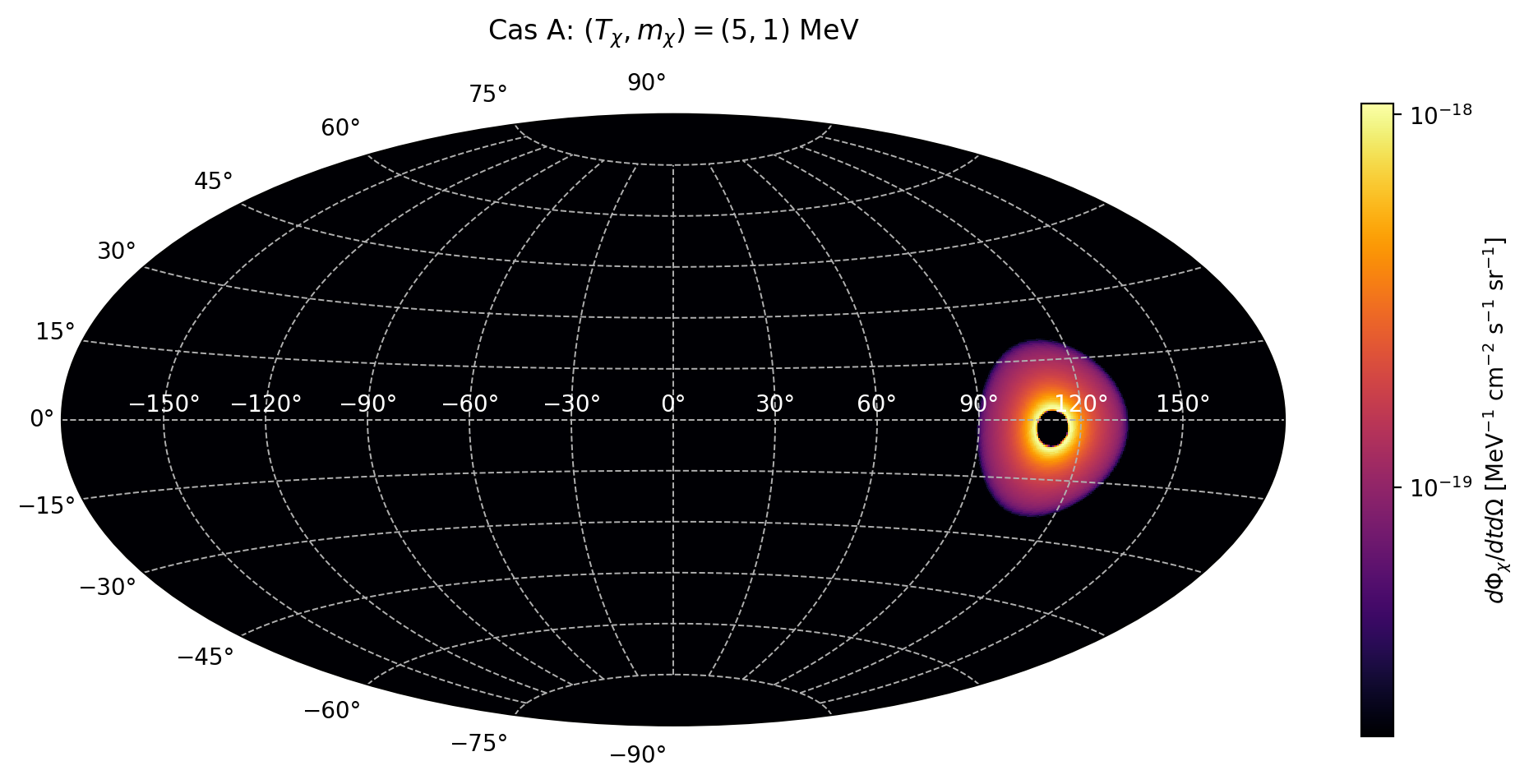

Note that we will eventually display the result using the Aitoff projection and in matplotlib such projections \(\ell\in[-\pi,\pi)\), thus we define a function wrap_angle to convert \(\ell\) from \([0,2\pi)\) to \([-\pi,\pi)\). The step-by-step approach is to:

  1. Construct a canvas across the entire galactic coordinate
  2. Calculate the \((\theta,\varphi)\) for every point \((\ell,b)\) on the canvas
  3. Put \((\theta,\varphi)\) into sn.differential_flux and retrieve the BDM differential flux at that point
def wrap_angle(l):
    """Confine longitudinal in -pi and pi"""
    return (l + np.pi) % (2 * np.pi) - np.pi

# Setup DM properties
Tx,mx = 5,1
Rs = 3.5 # kpc
t = 350 * sn.constant.year2Seconds

# Setup canvas for galactic coordinate l and b
l_vals = np.linspace(-np.pi,np.pi,800)
b_vals = np.linspace(-np.pi/2,np.pi/2,400)
L,B = np.meshgrid(l_vals,b_vals,indexing="ij")

# Evaluate dtheta and dvarphi for each grid point on the canvas
L_coord = wrap_angle(L - l_sn) # adjust galactic longitude to [-pi, pi)
B_coord = B - b_sn
dtheta = np.sqrt(L_coord**2 + B_coord**2)
dphi = np.arctan2(L_coord,B_coord)%(2 * np.pi) # using atan2 and mod 2pi to convert galactic latitude to [-pi/2, pi/2)

# Canvas to store the result
diffFlux = np.zeros_like(L)

with np.nditer([dtheta,dphi,diffFlux],op_flags=[['readonly'],['readonly'],['writeonly']]) as it:
    for theta,phi,flux in it:
        flux[...] = sn.differential_flux(t,Tx,mx,theta,phi,Rs,casA_beta)

# Plot
fig = plt.figure(figsize=(12, 5))
ax = fig.add_subplot(111,projection='aitoff')
norm = mcolors.SymLogNorm(linthresh=diffFlux.max()/1e2, vmin=diffFlux.max()/5e1, vmax=diffFlux.max(), base=10)
mesh = ax.pcolormesh(L , B, diffFlux, cmap='inferno', norm=norm, rasterized=True)

cbar = fig.colorbar(mesh, ax=ax, orientation='vertical')
cbar.set_label(r"$d\Phi_\chi/dtd\Omega$ [MeV$^{-1}$ cm$^{-2}$ s$^{-1}$ sr$^{-1}$]")

# axis label style
ax.tick_params(axis="x", colors="white")
ax.grid(True,linestyle='--', linewidth=0.7)

# axis ticks
x_ticks = np.linspace(-np.pi + np.pi/6, np.pi - np.pi/6, 11)
y_ticks = np.linspace(-np.pi/2, np.pi/2, 13)

ax.set_xticks(x_ticks)  # set galactic longitude tick labels
ax.set_xticklabels([r'−150°', '−120°', '−90°', '−60°', '−30°', '0°', '30°', '60°', '90°', '120°', '150°'])
ax.set_yticks(y_ticks)  # set galactic latitude tick labels
ax.set_yticklabels(['−90°', '−75°', '−60°', '−45°', '−30°', '−15°', '0°', '15°', '30°', '45°', '60°', '75°', '90°'])

ax.set_title(r'Cas A: $(T_\chi,m_\chi)=(5,1)$ MeV',y=1.1)
plt.show()
scheme

Note the above is a particular slice of \(T_\chi\). For practical case, one should integrate sn.differential_flux over a range of \(T_\chi\) due to none of the existing detectors having infinite energy resolution.

User-defined scattering amplitude

Functions sn.flux and sn.event and the core functions to construct them are all based on energy-independent cross sections \(\sigma_{\chi\nu}\) and \(\sigma_{\chi e}\). However, by introducing a specific particle model, cross sections are no longer energy-independent but depend on the Mandelstam variables and model parameters. Thus, sn.flux and sn.event are not applicable.

To resolve this issue, we provide a class sn.BoostedDarkMatter to cope with. This class integrate all the functions to evaluate BDM flux and event and manipulating halo properties as class methods. Additionally, this class takes scattering amplitudes for \(\chi\nu\) and \(\chi e\) interactions as its parameters and calculate \(d\sigma_{\chi\nu}/d\Omega_{\rm lab}\) and \(\sigma_{\chi e}\) automatically. We illustrate this by the famous \(L_{\mu-\tau}\) model with DM component \(\chi\). The Lagrangian is

\[ \begin{alignat}{1} \mathcal{L}_\chi \supset & -\frac{1}{4}V_{\mu\nu}V^{\mu\nu}+\frac{\varepsilon}{2\cos\theta_W}F_{\mu\nu}V^{\mu\nu}-\frac{1}{2}m_V^2 V_\mu V^\mu \nonumber \\ & \quad -m_\chi \bar{\chi}\chi +g_\chi V_\mu \bar{\chi}\gamma^\mu \chi \nonumber \\ & \quad +g_V V_\mu Q_{\alpha\beta}\left(\bar{\ell}_\alpha\gamma^\mu \ell_\beta +\bar{\nu}_\alpha \gamma^\mu P_L \nu_\beta\right) \end{alignat} \]

with the first line for kinetic mixing, the second line for dark sector interaction and the last for coupling between dark and lepton sector. The associated Feynman diagrams for \(\chi \nu\) and \(\chi e\) scatterings are shown in Fig. 2.

scheme      scheme
Figure 2. Feynman diagrams for \(\chi\nu\) (left) and \(\chi e\) (right) scatterings described by \(L_{\mu-\tau}\) model.

The amplitude squared \(|\mathcal{M}|^2\) is given by

\[ \begin{equation} |\mathcal{M}|^{2} =2\left(\frac{\mathcal{Q}}{t-m_{V}^{2}}\right)^{2}[s^{2}+u^{2} +4t(m_{1}^{2}+m_{2}^{2}) -2(m_{1}^{2}+m_{2}^{2})^{2}], \end{equation} \]

where \(s\), \(t\) and \(u\) are Mandelstam variables and \(m_1\) and \(m_2\) are incoming and being scattered particles respectively. We can encode such information into python function by

def amp2_xv(s,t,u,mx) -> float:
    """DM-v scattering amplitude squared"""
    mV = mx/3
    gV,gx = 1e-06,1e-02
    Q = gV*gx
    return (s**2 + u**2 + 4*t*(mx**2) - 2*(mx**2)**2)*(Q/(t - mV**2))**2

def amp2_xe(s,t,u,mx) -> float:
    """DM-e scattering amplitude squared"""
    mV = mx/3
    me = 0.511 # MeV
    gx,eps = 1e-02,1e-06
    Q = gx*eps
    return 2*(s**2 + u**2 + 4*t*(me**2 + mx**2) - 2*(me**2 + mx**2)**2)*(Q/(t - mV**2))**2

Both functions only take 4 positioning arguments with the first three are Mandelstam variables (MeV2) and the last is DM mass (MeV). Other model parameters should be defined either in the function or somewhere else. They cannot be the function input(s).

We again use Cas A as the example. First, build up the instance for Cas A BDM and given it is within our Milky Way, we have \(R_g = R_e=8.5\) kpc.

casA_bdm = sn.BoostedDarkMatter(Rs=Rs,Rg=8.5,beta=casA_beta,amp2_xv=amp2_xv,amp2_xe=amp2_xe,is_spike=False)

There are plenty of methods can be called in the instance casA_bdm. For example, we can examine the associated \(d\sigma_{\chi\nu}/d\Omega_{\rm lab}\) and \(\sigma_{\chi e}\):

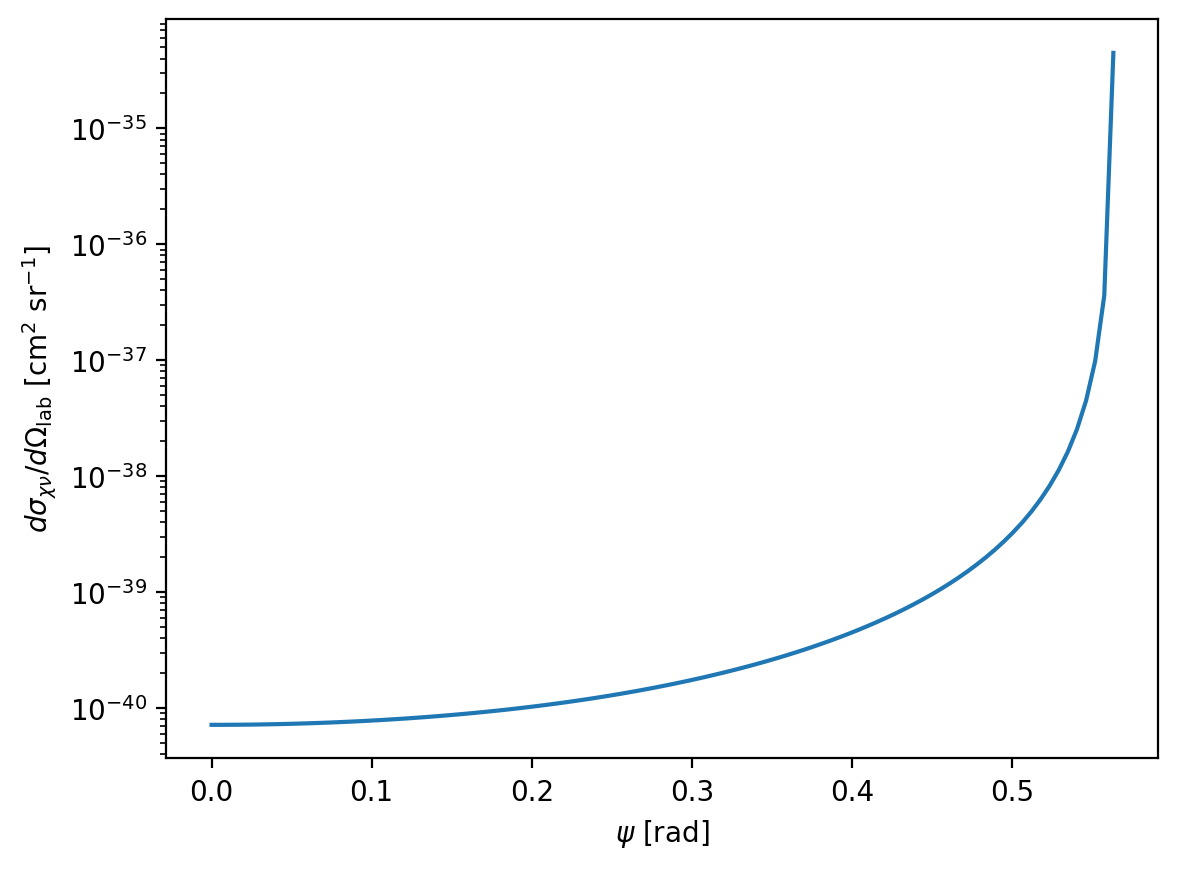

# Differential DM-v cross sections
Tx,mx = 5,1
# Get maximumlly allowed psi
psi_max = sn.get_psiMax(Tx,mx)
psi_max -= psi_max/1000 # avoid diverge at psi_max
psi_vals = np.linspace(0,psi_max,100)
# differential sigma_xv
dsigxv = [casA_bdm.dsigma_xv(Tx,mx,psi) for psi in psi_vals]

# Plot
plt.plot(psi_vals,dsigxv)
plt.yscale('log')
plt.xlabel(r'$\psi$ [rad]')
plt.ylabel(r'$d\sigma_{\chi\nu}/d\Omega_{\rm lab}$ [cm$^2$ sr$^{-1}$]')
plt.show()
scheme

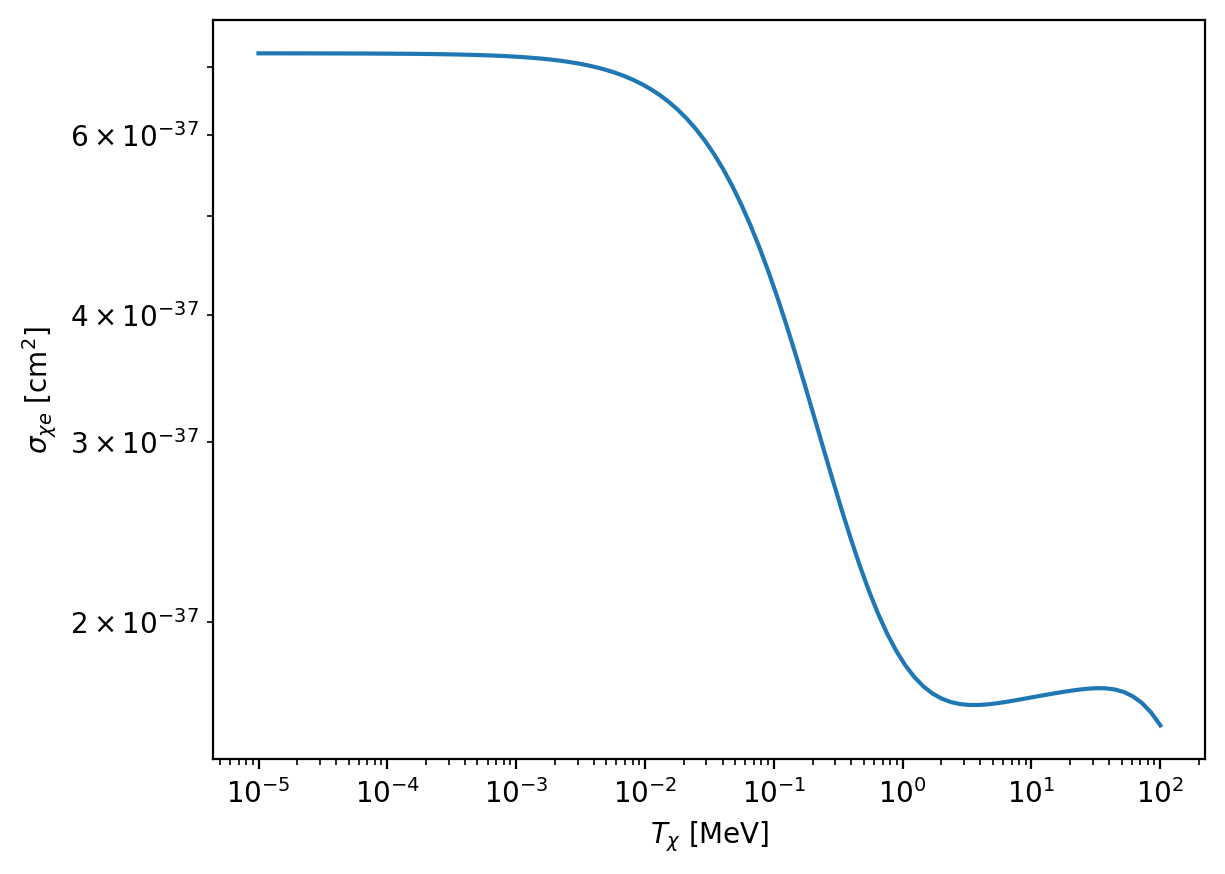

# Differential DM-e cross sections
mx = 1
Tx_vals = np.logspace(-5,2,100)
# differential sigma_xv
sigxe = [casA_bdm.sigma_xe(Tx,mx) for Tx in Tx_vals]

# Plot
plt.plot(Tx_vals,sigxe)
plt.xscale('log')
plt.yscale('log')
plt.xlabel(r'$T_\chi$ [MeV]')
plt.ylabel(r'$\sigma_{\chi e}$ [cm$^2$]')
plt.show()
scheme

Now we are ready to evaluate the BDM flux and event. For flux, given Cas A exploded 350 years ago, it is already 350 year-old. We have to determine the vanishing time first.

# Setup DM properties
Tx,mx = 5,1
Rs = 3.5 # kpc
tvan = sn.get_tvan(Tx,mx,Rs)
print(f'Vanishing time is {tvan/sn.constant.year2Seconds:.2f} years.')

Vanishing time is 557.07 years.

Hence for \((T_\chi,m_\chi)=(5,1)\) MeV, \(t_{\rm van}=557.07\) years. However, 350 years have passed, leaving only 207 years atmost before it ceases completely. We can use the flux method to evaluate. It takes 3 inputs: t, Tx and mx. Additional **kwargs determine the cut distances d_cut and r_cut for SN\(\nu\) spectrum and halo profile, respectively, due to both are proportional \(1/L^n\) and diverges when \(L\to 0\). Others like nitn and neval are for vegas. Note that this method does not contain any **kwargs related to halo profile as the halo behavior is decided during the initialization of the instance. See their API pages: sn.BoostedDarkMatter and sn.params for detail.

t0 = 350 * sn.constant.year2Seconds
time_vals = np.linspace(t0,tvan,70)

def get_casA_flux(t,Rs=Rs,Rg=8.5,beta=casA_beta,amp2_xv=amp2_xv,amp2_xe=amp2_xe):
    """flux"""
    import snorer as sn
    Tx,mx = 5,1
    casA_bdm = sn.BoostedDarkMatter(Rs=Rs,Rg=8.5,beta=beta,amp2_xv=amp2_xv,amp2_xe=amp2_xe,is_spike=False)
    return casA_bdm.flux(t,Tx,mx,neval=5000)

# request a cluster
with ipp.Cluster(n = 5) as rc: # 5 cores
    # get a view on the cluster
    view = rc.load_balanced_view()
    # submit the tasks
    asyncresult = view.map_async(get_casA_flux, time_vals)
    # wait interactively for results
    asyncresult.wait_interactive()
    # retrieve actual results
    casA_flux = asyncresult.get()

Starting 5 engines with <class 'ipyparallel.cluster.launcher.LocalEngineSetLauncher'>
    0%|          | 0/5 [00:00<?, ?engine/s]
get_casA_flux:   0%|          | 0/70 [00:00<?, ?tasks/s]
Stopping engine(s): 1742019912
engine set stopped 1742019912: {'engines': {'0': {'exit_code': 0, 'pid': 35213, 'identifier': '0'}, '1': {'exit_code': 0, 'pid': 35214, 'identifier': '1'}, '2': {'exit_code': 0, 'pid': 35215, 'identifier': '2'}, '3': {'exit_code': 0, 'pid': 35216, 'identifier': '3'}, '4': {'exit_code': 0, 'pid': 35217, 'identifier': '4'}}, 'exit_code': 0}
Stopping controller
Controller stopped: {'exit_code': 0, 'pid': 35201, 'identifier': 'ipcontroller-1742019911-edc4-31540'}

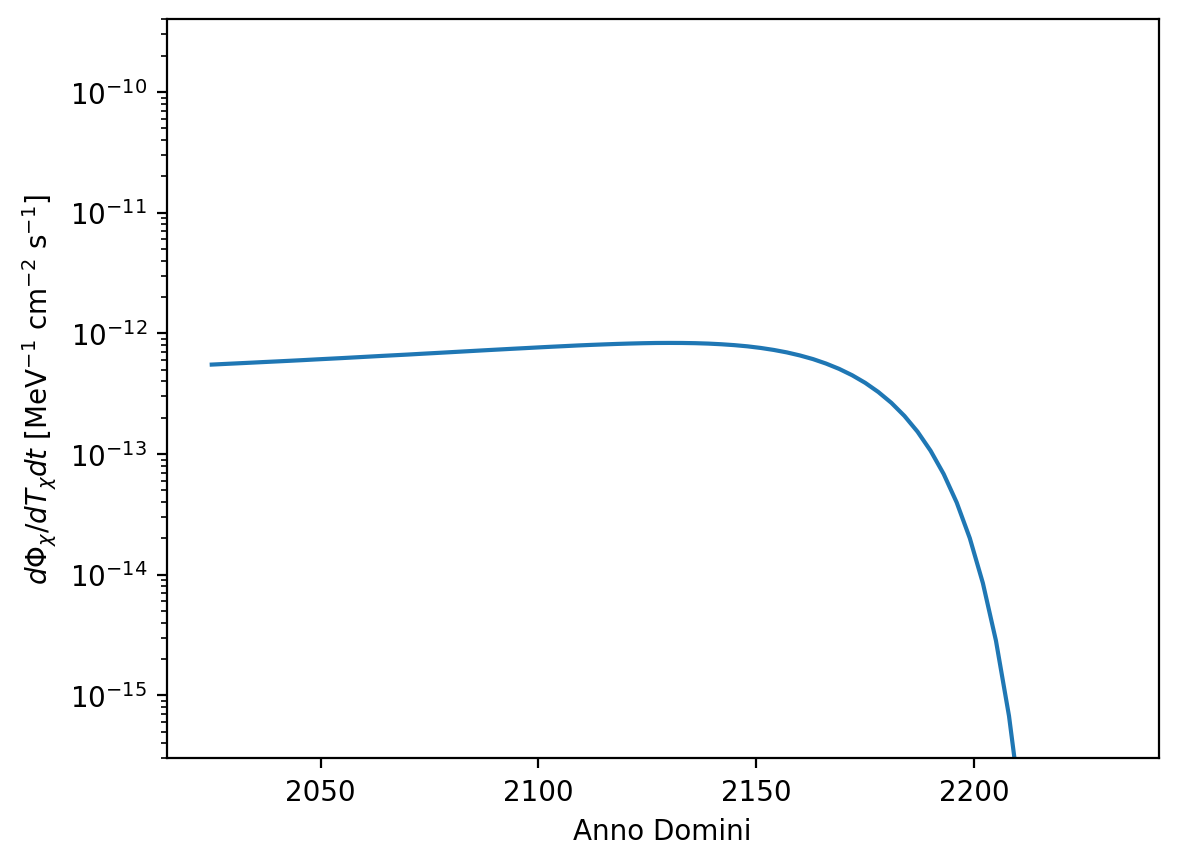

plt.plot(time_vals/sn.constant.year2Seconds + 1675,casA_flux)
plt.yscale('log')
plt.ylim(3e-16,)
plt.xlabel(r'Anno Domini')
plt.ylabel(r'$d\Phi_\chi/dT_\chi dt$ [MeV$^{-1}$ cm$^{-2}$ s$^{-1}$]')
plt.show()
scheme

To evaluate event number, remember the parameter t_range in sn.event is the integration range of time interval and starts from \(t_0=10\) seconds by default. But it is not the case for Cas A as 350 years has passed. We shoud begin \(t_0=350\) years and end with, say, 35 years after \(t_0\). Hence,

mx_vals = np.logspace(-6,2,35)

def get_casA_event(mx,Rs=Rs,Rg=8.5,beta=casA_beta,amp2_xv=amp2_xv,amp2_xe=amp2_xe):
    """flux"""
    import snorer as sn
    t0 = 350 * sn.constant.year2Seconds
    tf = (350 + 35) * sn.constant.year2Seconds
    casA_bdm = sn.BoostedDarkMatter(Rs=Rs,Rg=8.5,beta=beta,amp2_xv=amp2_xv,amp2_xe=amp2_xe,is_spike=False)
    try:
        event = casA_bdm.event(mx,t_range=[t0,tf],neval=15000)
    except:
        event = 0
    return event

# request a cluster
with ipp.Cluster(n = 5) as rc: # 5 cores
    # get a view on the cluster
    view = rc.load_balanced_view()
    # submit the tasks
    asyncresult = view.map_async(get_casA_event, mx_vals)
    # wait interactively for results
    asyncresult.wait_interactive()
    # retrieve actual results
    casA_event = asyncresult.get()

Starting 5 engines with <class 'ipyparallel.cluster.launcher.LocalEngineSetLauncher'>
    0%|          | 0/5 [00:00<?, ?engine/s]
get_casA_event:   0%|          | 0/35 [00:00<?, ?tasks/s]
engine set stopped 1742023011: {'engines': {'1': {'exit_code': 0, 'pid': 36515, 'identifier': '1'}, '2': {'exit_code': 0, 'pid': 36516, 'identifier': '2'}, '0': {'exit_code': 0, 'pid': 36514, 'identifier': '0'}, '3': {'exit_code': 0, 'pid': 36517, 'identifier': '3'}, '4': {'exit_code': 0, 'pid': 36518, 'identifier': '4'}}, 'exit_code': 0}
Stopping engine(s): 1742023069
engine set stopped 1742023069: {'engines': {'0': {'exit_code': 0, 'pid': 36594, 'identifier': '0'}, '1': {'exit_code': 0, 'pid': 36595, 'identifier': '1'}, '2': {'exit_code': 0, 'pid': 36596, 'identifier': '2'}, '3': {'exit_code': 0, 'pid': 36597, 'identifier': '3'}, '4': {'exit_code': 0, 'pid': 36598, 'identifier': '4'}}, 'exit_code': 0}
Stopping controller
Controller stopped: {'exit_code': 0, 'pid': 36580, 'identifier': 'ipcontroller-1742023068-i421-31540'}

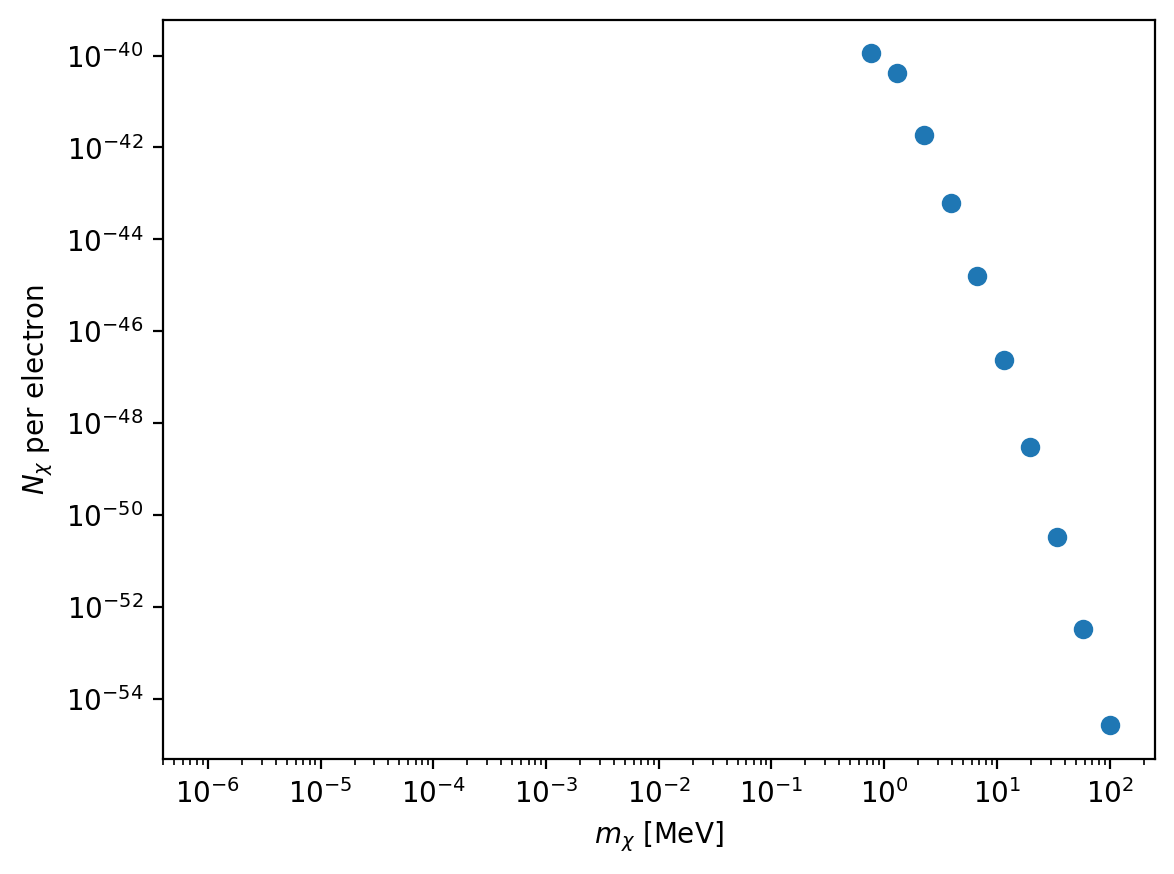

plt.scatter(mx_vals,casA_event)
plt.xscale('log')
plt.yscale('log')
#plt.ylim(3e-16,)
plt.xlabel(r'$m_\chi$ [MeV]')
plt.ylabel(r'$N_\chi$ per electron')
plt.show()
scheme

Unlike sn.event which the result is normalized to per electron and \(\sigma_{\chi e}=1\) cm2, in this class instance, \(\sigma_{\chi e}\) is determined by user-specified \(|\mathcal{M}|^2\), thus the cross section is exact what user expects at such energy. One only needs to multiply the correct electron number \(N_e\) in that detector. For example, Super-K has \(7\times 10^{33}\) electrons approximately, then the BDM event is

\[ N_\chi^{\rm SK} = N_e^{\rm SK} \times N_\chi = 7\times 10^{33} N_\chi \]

In the above plot, one sees that no event when \(m_\chi\lesssim 500\) keV. It is because the corresponding \(t_{\rm van}\) for \(m_\chi\) and \(T_\chi\)-integrated range are much smaller than 350 years. Thus BDM from Cas A no longer exists at the present day.

DM-nucleus scattering

We discuss a more general case when target in the detector is not electron. Though by default sn.BoostedDarkMatter assumes \(\chi e\) scattering, but the parameter amp2_xe is not exclusively for \(\chi e\) interaction.

To elaborate, we assume the target to be interacted is Xenon with target mass approximating \(m_t = 1.3\times 10^5\) MeV. We can rewrite amp2_xe by

m_xenon = 1.3e5 # xenon mass

def amp2_x_xenon(s,t,u,mx) -> float:
    """DM-xenon scattering amplitude squared"""
    mV = mx/3
    mt = m_xenon # xenon mass, MeV
    gx,eps = 1e-02,1e-06
    Q = gx*eps
    return 2*(s**2 + u**2 + 4*t*(mt**2 + mx**2) - 2*(mt**2 + mx**2)**2)*(Q/(t - mV**2))**2

When initialize sn.BoostedDarkMatter instance, we have to specify the target mass mt too, such as

casA_bdm_xenon = sn.BoostedDarkMatter(Rs=Rs,Rg=8.5,beta=casA_beta,amp2_xv=amp2_xv,amp2_xe=amp2_x_xenon,mt=m_xenon,is_spike=False)

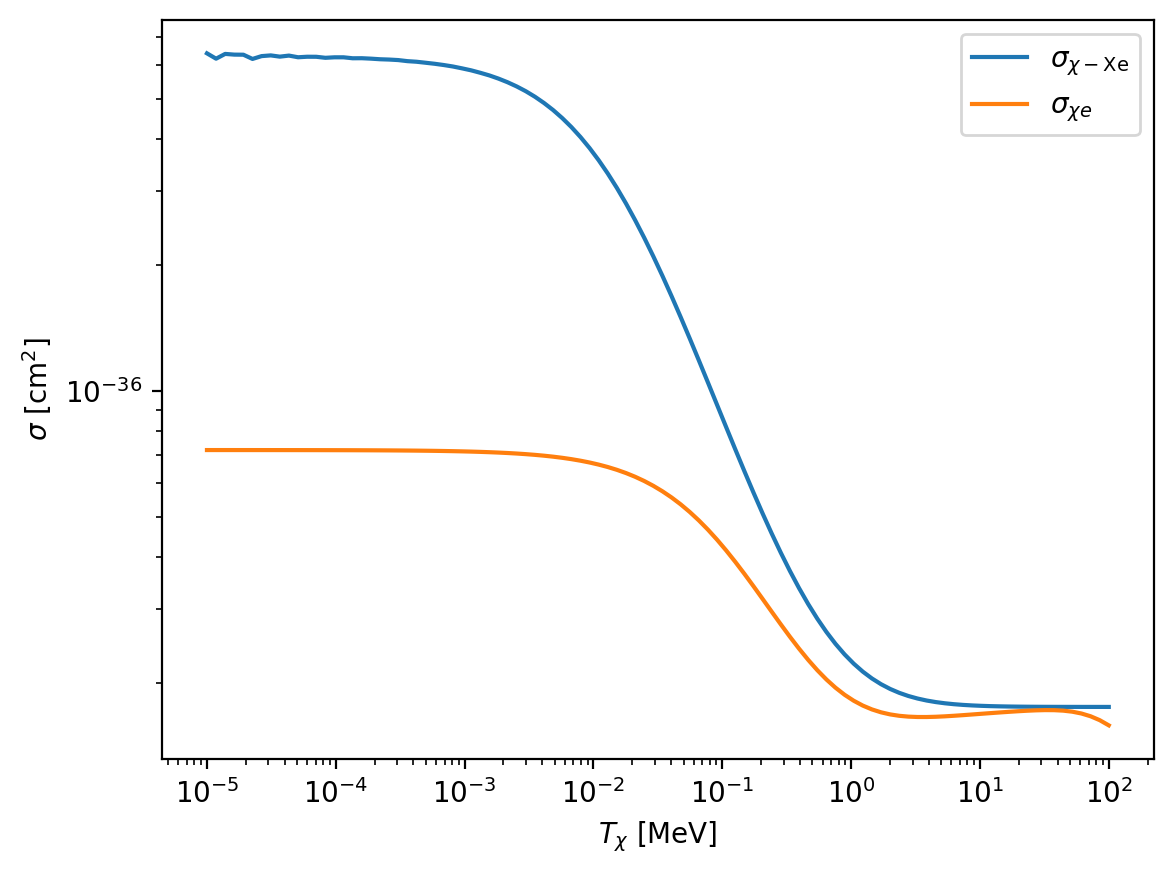

Now we compare the associated \(\sigma_{\chi e}\) and \(\sigma_{\chi-{\rm Xe}}\),

# Differential DM-e cross sections
mx = 1
Tx_vals = np.logspace(-5,2,100)
sigxe = [casA_bdm.sigma_xe(Tx,mx) for Tx in Tx_vals]
sigx_xe = [casA_bdm_xenon.sigma_xe(Tx,mx) for Tx in Tx_vals]

# Plot
plt.plot(Tx_vals,sigx_xe,label=r'$\sigma_{\chi - {\rm Xe}}$')
plt.plot(Tx_vals,sigxe,label=r'$\sigma_{\chi e}$')
plt.xscale('log')
plt.yscale('log')
plt.xlabel(r'$T_\chi$ [MeV]')
plt.ylabel(r'$\sigma$ [cm$^2$]')
plt.legend()
plt.show()
scheme

Thus in casA_bdm_xenon, the method sigma_xe is for DM-Xenon interaction cross section. Note that the above is a very naive example and is not plausible in practice. Given when nucleus is under discussion, nucleus form factor should be introduced in amp2_x_xenon. We relegate this to the users who work in this field.

Override methods dsigma_xv and sigma_xe

Under certain circumstances, issues and unstable results may occur in our algorithm for calculating dsigma_xv and sigma_xe. If this happens, users may wish to override these two methods with their own functions. It can be done easily, given that dsigma_xv and sigma_xe take three and two positioning arguments, respectively. See this API page. Users can provide their own functions and replace them, as long as the units for dsigma_xv and sigma_xe are cm2 sr−1 and cm2, respectively.

For example, let dsigma_xv and sigma_xe be constant

# constant dsigma_xv
casA_bdm.dsigma_xv = lambda Tx,mx,psi: 1e-35/4/np.pi
# constant sigma_xe
casA_bdm.sigma_xe = lambda Tx,mx: 1e-35

This will override the methods for calculating cross sections in casA_bdm and affect casA_bdm.flux and casA_bdm.event.
