Tutorial¶

In this tutorial, we briefly introduce the basic usage of snorer, from the basic functions related to supernova (SN) flux, and boosted dark matter (BDM) flux and event calculations, etc. This tutorial is not meant for a complete guide for all classses and functions, but a portal to utilize the most important feature for physics calculation. For how to manipulate DM halo, we refer to their API description pages: snorer.HaloSpike and snorer.nx. To have a full description of every functions, we refer the users to API document. In the following content, all equation numbers are referred to BDM Physics unless specified otherwise.

We begin with importing snorer and other useful packages in this tutorial. We use ipyparallel to manifest multiprocessing feature on jupyter for Mac/Windows users. For linux users, they can simply use multiprocessing.

# import python packages
import numpy as np
import ipyparallel as ipp

# import plotting package
import matplotlib.pyplot as plt
import matplotlib.colors as mcolors
# uncomment the following two lines if you have a Hi-DPI monitor and wish to have a better figure resolution
# %matplotlib inline
# %config InlineBackend.figure_format='retina'

# import snorer
import snorer as sn
print(f'Current version of snorer: {sn.__version__}')

Current version of snorer: 2.0.0

The SN\(\nu\) spectrum¶

The SN\(\nu\) spectrum is shown in Eq. (9) and the corresponding function in snorer is sn.sn_nu_spectrum. It takes four arguments where the first two Ev and d are necessary. They indicate the SN\(\nu\) energy, in MeV, and the flux at distance \(d\) to the SN explosion site. The last two d_trunct and is_density are optional. When \(d\to 0\), Eq. (9) diverges, one has to set a truncation point. The default is \(3.24\times 10^{-15}\) kpc which roughly corresponds to 100 km and is the size of neutrino sphere. is_density is to change the output to density unit, see Eq. (12).

# Neutrino energy
Ev_vals = np.logspace(-3,2,100)
# Distance to the explosion site
d_vals = np.logspace(-16,2,200)

# Setup meshgrid for (Ev,d) plane
Ev,D = np.meshgrid(Ev_vals,d_vals,indexing='ij')
# Evaluate SNv flux
DNvDEv = sn.sn_nu_spectrum(Ev,D)

# Plot

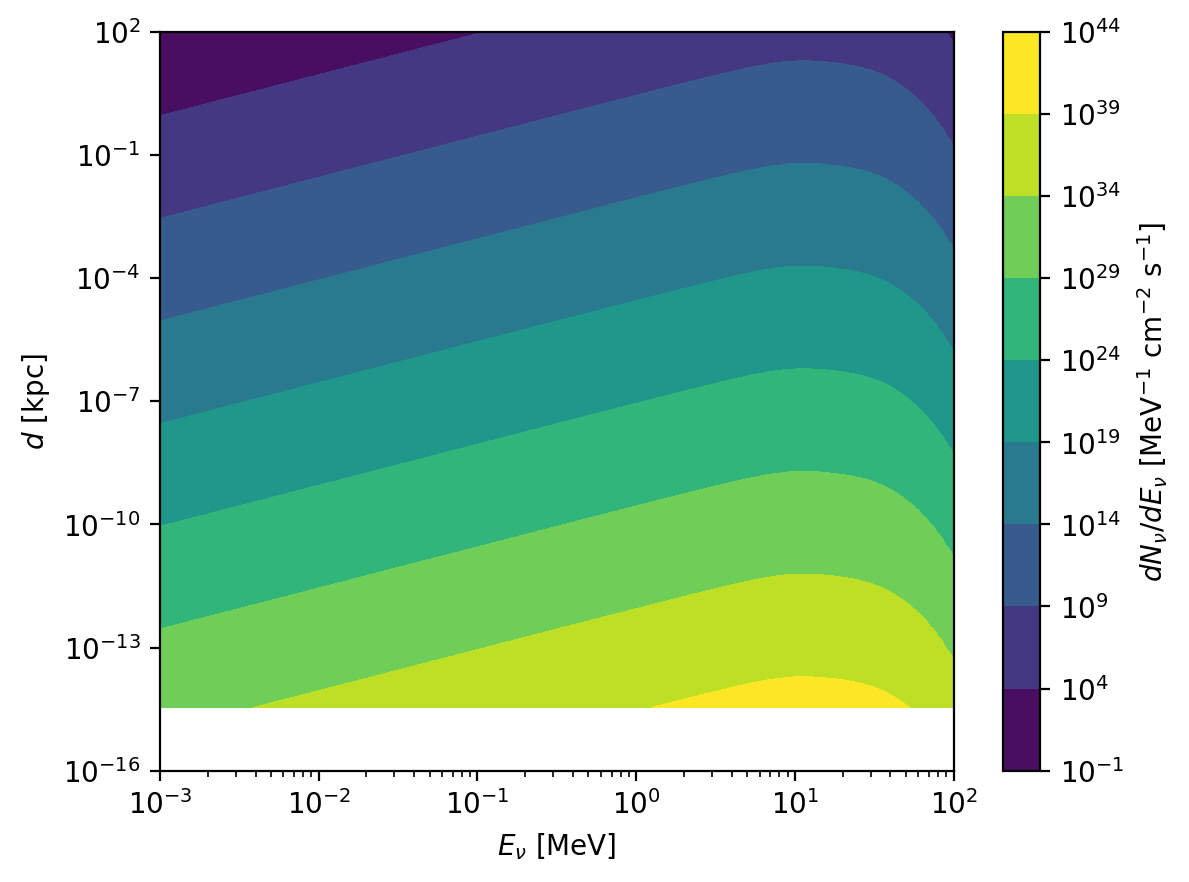

fig, ax = plt.subplots()
# log-scaler color
norm = mcolors.LogNorm(vmin=DNvDEv.min()+1, vmax=DNvDEv.max())
# Contour plot
contour = ax.contourf(Ev, D, DNvDEv, levels=20, cmap="viridis", norm=norm)
ax.set_xscale('log')
ax.set_yscale('log')
ax.set_xlabel(r'$E_\nu$ [MeV]')
ax.set_ylabel(r'$d$ [kpc]')
# Color bar
cbar = fig.colorbar(contour, ax=ax)
cbar.set_label(r"$dN_\nu/dE_\nu$ [MeV$^{-1}$ cm$^{-2}$ s$^{-1}$]")
plt.show()

The differential DM-\(\nu\) cross section¶

How DM distributes in lab-frame angular direction after boosted by \(\nu\) is desecribed by Eq. (2). Given its energy indpendency, we assume the total cross section, after integrating over solid angle, is \(\sigma_0\). The differential case is just \(\sigma_0 \times g_\chi\). The corresponding function is sn.dsigma_xv and it takes four parameters. The first three are Ev, mx and psi, the incoming neutrino energy (MeV), DM mass (MeV) and lab frame scattering angle (rad). The last one sigxv0 is \(\sigma_0\) and by default is 10⁻⁴⁵ cm².

# Neutrino energy, mx values and psi range
Ev = 10
mx_vals = np.logspace(-3,0,4)
sigma0 = 1e-35
psi_vals = np.linspace(0,np.pi/2,500)

for mx in mx_vals:
    # differential cross section
    diff_sigma0 = sn.dsigma_xv(Ev,mx,psi_vals,sigxv0 = sigma0)
    # make plot

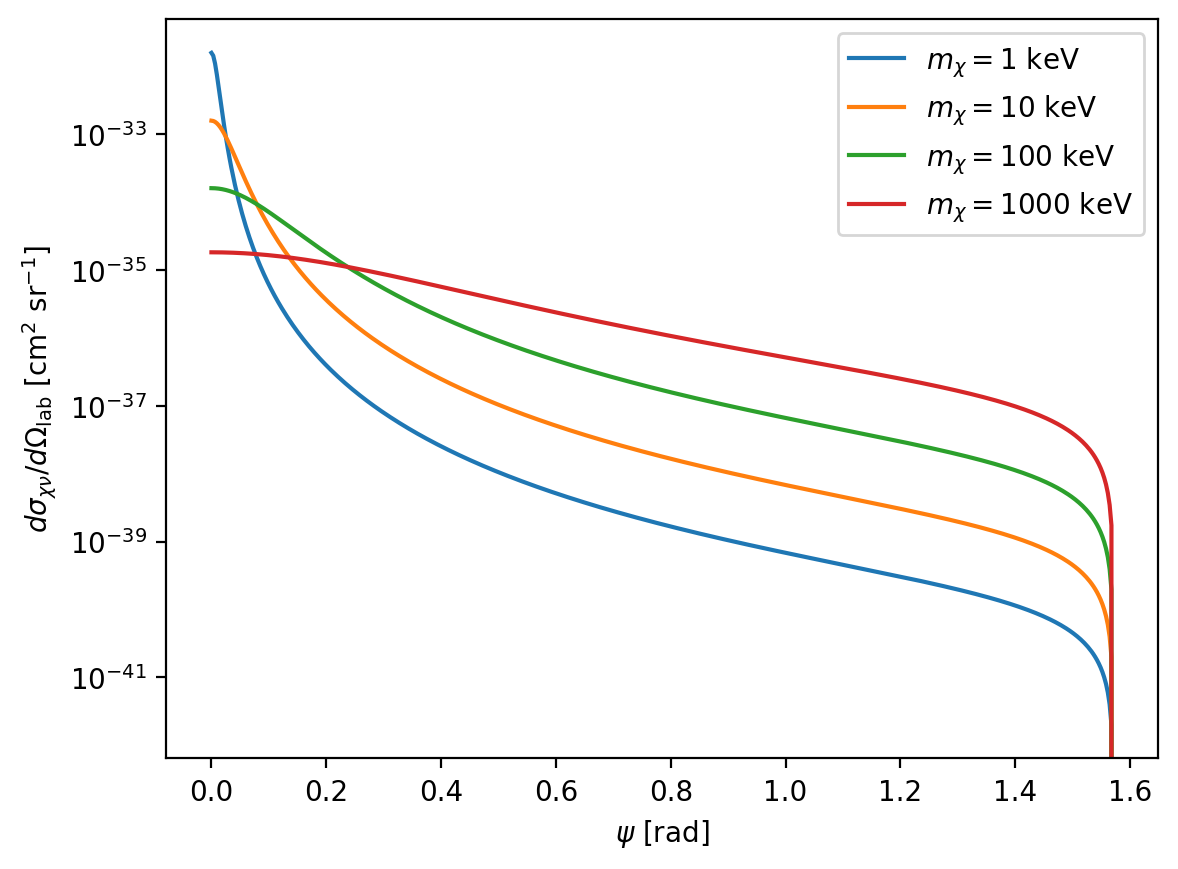

    plt.plot(psi_vals,diff_sigma0,label=fr'$m_\chi={1000*mx:.0f}$ keV')
plt.yscale('log')
plt.legend()
plt.xlabel(r'$\psi$ [rad]')
plt.ylabel(r'$d\sigma_{\chi\nu}/d\Omega_{\rm lab}$ [cm$^2$ sr$^{-1}$]')
plt.show()

One can also compare with sn.get_gx because sn.dsigma_xv = sigxv0 * sn.get_gx. Note that the plot in sn.get_gx page, we have weighted the result by \(d\Omega=2\pi \sin\psi\). It explains the numerics is 0 at \(\psi=0\).

Evaluating SN\(\nu\) BDM¶

Flux at Earth¶

The SN\(\nu\) BDM flux at Earth is given by Eq. (18), which has been integrated over the sky that contains non-zero BDM. The corresponding function is sn.flux and takes 8 parameters and **kwargs. The first 5 are t, Tx, mx, Rs and beta that indicate the time of arrival at Earth, relative to SN\(\nu\)'s arrival at Earth, the BDM kinetic energy (MeV), the BDM mass (MeV), the distance to SN (kpc) and the off-center angle (rad). The rest 3 optional are Re = 8.5, sigxv0 = 1e-45 and is_density = False. Re is the distance to galactic center and is_density determines whether the halo spike should be included. For additional keyword arguments, see pages for sn.flux and sn.params.

Additionally, BDM flux only lasts unitil \(t=t_{\rm van}\), see Eq. (23). To evaluate the time-dependent flux, \(t>t_{\rm van}\) is meaningless as the flux is 0. We can obtain the maximum time to be calculated at first by sn.get_tvan. It takes three inputs Tx, mx and Rs.

For example, let's assume there is a SN at \((R_s,\beta)=(9.9\,{\rm kpc},0.33\,{\rm rad})\) and BDM has \((T_\chi,m_\chi)=(10,0.1)\) MeV:

# SN location
Rs, beta = 9.9, 0.33  # kpc, rad

# BDM properties
Tx, mx = 10, 0.1 # MeV

# Get vanishing time
tvan = sn.get_tvan(Tx,mx,Rs)
print(f'Vanishing time is {tvan/sn.constant.year2Seconds:.2f} years.') # convert from seconds to years

Vanishing time is 80.61 years.

For a particular time, say \(t=23\) years, one can set

t = 23 * sn.constant.year2Seconds
bdmflux = sn.flux(t,Tx,mx,Rs,beta)
print(f'BDM flux at {t/sn.constant.year2Seconds:.2f} is {bdmflux:.4e} /MeV/cm^2/s.')

BDM flux at 23.00 is 5.5491e-18 /MeV/cm^2/s.

Now we can construct the time-dependent BDM flux, say from \(t=0\) to \(t=80.61\) years. In sn.flux we use vegas to perform the multidimension integral Eq. (18). Hence we use ipyparallel to utilize the multiprocessing computing on Mac/Windows jupyter notebook.

# Define a function for multiprocessing flux evaluation by ipyparallel
def get_flux(t):
    from snorer import flux
    Rs, beta = 9.9, 0.33  # kpc, rad
    Tx, mx = 10, 0.1 # MeV
    return flux(t,Tx,mx,Rs,beta)

# Time steps
time_vals = np.logspace(1,np.log10(tvan),50)

# request a cluster
with ipp.Cluster(n = 5) as rc: # 5 cores
    # get a view on the cluster
    view = rc.load_balanced_view()
    # submit the tasks
    asyncresult = view.map_async(get_flux, time_vals)
    # wait interactively for results
    asyncresult.wait_interactive()
    # retrieve actual results
    bdmflux_time = asyncresult.get()

Starting 5 engines with <class 'ipyparallel.cluster.launcher.LocalEngineSetLauncher'>
    0%|          | 0/5 [00:00<?, ?engine/s]
get_flux:   0%|          | 0/50 [00:00<?, ?tasks/s]
Stopping engine(s): 1741921266
engine set stopped 1741921266: {'engines': {'0': {'exit_code': 0, 'pid': 5889, 'identifier': '0'}, '1': {'exit_code': 0, 'pid': 5890, 'identifier': '1'}, '2': {'exit_code': 0, 'pid': 5891, 'identifier': '2'}, '3': {'exit_code': 0, 'pid': 5892, 'identifier': '3'}, '4': {'exit_code': 0, 'pid': 5893, 'identifier': '4'}}, 'exit_code': 0}
Stopping controller
Controller stopped: {'exit_code': 0, 'pid': 5876, 'identifier': 'ipcontroller-1741921265-4v3e-2996'}

# Plot

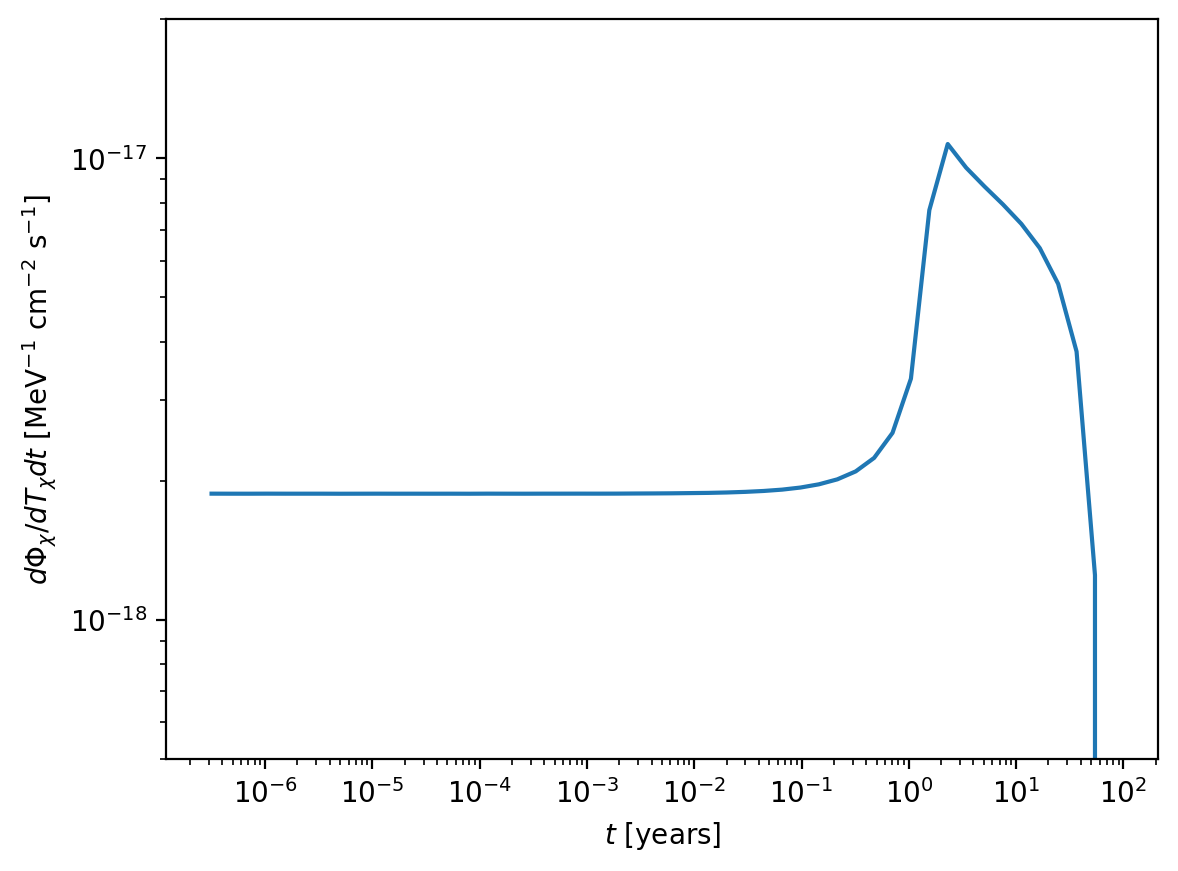

plt.plot(time_vals/sn.constant.year2Seconds,bdmflux_time)
plt.xscale('log')
plt.yscale('log')
plt.ylim(5e-19,2e-17)
plt.xlabel(r'$t$ [years]')
plt.ylabel(r'$d\Phi_\chi/dT_\chi dt$ [MeV$^{-1}$ cm$^{-2}$ s$^{-1}$]')
plt.show()

Event at Earth¶

We call function sn.event to evaluate the BDM event \(N_\chi\) at Earth. It's simply

\[ N_\chi =N_e \sigma_{\chi e} \int_{t_{\rm min}}^{t_{\rm max}} dt\int_{T_{\chi,{\rm min}}}^{T_{\chi,{\rm max}}}dT_\chi \frac{d\Phi_\chi}{dT_\chi dt} \]

It takes 8 inputs and **kwargs. The first three mx, Rs and beta are necessary. The last five Re, Tx_range, t_range, sigxv0 and is_spike are optional. By default Tx_range = [5,30] is the \(T_\chi\)-integration range (MeV) and t_range = [10,1.1045e+09] is the time-integration range (seconds). The default \(t_{\rm max}\) approximates 35 years. Note that the function will automatically truncate \(t_{\rm max}\) at \(t_{\rm van}\) if the user-input \(t_{\rm max}\) is greater than \(t_{\rm van}\).

Note that sn.event is normalized to \(N_e = 1\), the electron number, and \(\sigma_{\chi e}=1\) cm², the DM-electron cross section. One can easily scale the result to a detector with arbitrary number of \(N_e\) and \(\sigma_{\chi e}=1\).

# Define a function for multiprocessing event evaluation by ipyparallel
def get_event(mx):
    from snorer import event
    Rs, beta = 8.5, 0.0  # kpc, rad
    return event(mx,Rs,beta,r_cut=1e-5,neval=30000)  # increasing the evaluation number in each MCMC chain in vegas

# DM mass to be evaluated
mx_vals = np.logspace(-6,2,35)

# request a cluster
with ipp.Cluster(n = 5) as rc: # 5 cores
    # get a view on the cluster
    view = rc.load_balanced_view()
    # submit the tasks
    asyncresult = view.map_async(get_event, mx_vals)
    # wait interactively for results
    asyncresult.wait_interactive()
    # retrieve actual results
    bdmevent_mx = asyncresult.get()

Starting 5 engines with <class 'ipyparallel.cluster.launcher.LocalEngineSetLauncher'>
    0%|          | 0/5 [00:00<?, ?engine/s]
get_event:   0%|          | 0/35 [00:00<?, ?tasks/s]
engine set stopped 1741928354: {'engines': {'0': {'exit_code': 0, 'pid': 9398, 'identifier': '0'}, '1': {'exit_code': 0, 'pid': 9399, 'identifier': '1'}, '2': {'exit_code': 0, 'pid': 9400, 'identifier': '2'}, '4': {'exit_code': 0, 'pid': 9402, 'identifier': '4'}, '3': {'exit_code': 0, 'pid': 9401, 'identifier': '3'}}, 'exit_code': 0}
Stopping engine(s): 1741928391
engine set stopped 1741928391: {'engines': {'0': {'exit_code': 0, 'pid': 9444, 'identifier': '0'}, '1': {'exit_code': 0, 'pid': 9445, 'identifier': '1'}, '2': {'exit_code': 0, 'pid': 9446, 'identifier': '2'}, '3': {'exit_code': 0, 'pid': 9447, 'identifier': '3'}, '4': {'exit_code': 0, 'pid': 9448, 'identifier': '4'}}, 'exit_code': 0}
Stopping controller
Controller stopped: {'exit_code': 0, 'pid': 9432, 'identifier': 'ipcontroller-1741928390-sv9q-2996'}

Assume \(N_e=3\times 10^{33}\) and \(\sigma_{\chi e}=10^{-35}\) cm²:

Ne = 1e33
sigxe = 1e-35
bdmevent_mx = np.array(bdmevent_mx) * Ne * sigxe

# Plot

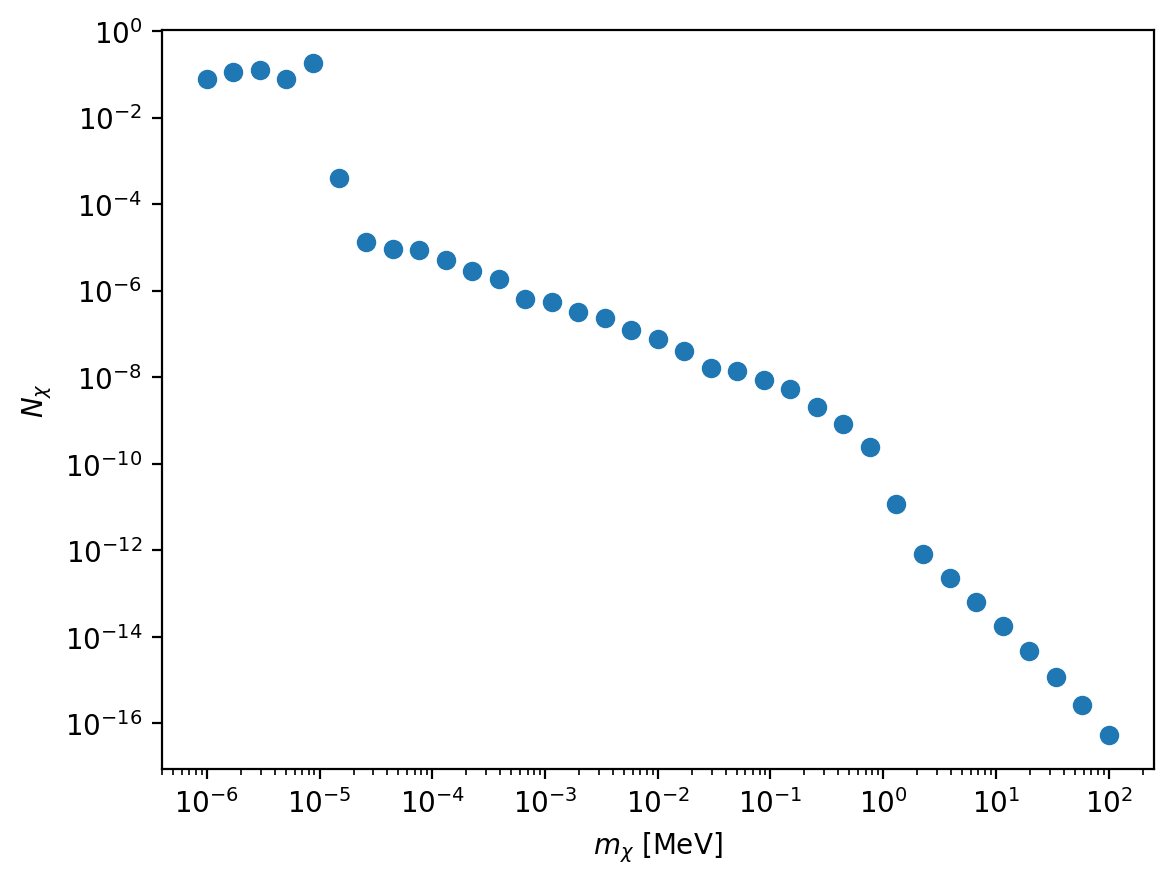

plt.scatter(mx_vals,bdmevent_mx)
plt.xscale('log')
plt.yscale('log')
#plt.ylim(5e-19,2e-17)
plt.xlabel(r'$m_\chi$ [MeV]')
plt.ylabel(r'$N_\chi$')
plt.show()

More about `**kwargs` in `sn.flux` and `sn.event`¶

We elaborate the optional parameters contained in **kwargs for both sn.flux and sn.event. Practically, they determine the DM halo shape (sn.params.halo and sn.params.spike) and control vegas algortihm (sn.params.vegas). See its API page for detail.

For halo related **kwargs, if sets is_spike = False, then only three are avalaible:

rhos: Characteristic denisty, MeV cm^-3.
rs: Characteristic length, kpc.
n: Halo profile slope.

If is_spike = True, then there are five additional **kwargs will be activated:

mBH: Supermassive black hole (SMBH) mass, \(M_\odot\).
tBH: SMBH age, years.
rh: SMBH influence radius, kpc.
alpha: Spike slope, string type, only two options: '3/2' and '7/3'.
sigv: DM annihilation cross section in the unit of 10^-26 cm³ s^-1. For example, if we wish to have \(\langle \sigma v\rangle = 3\times 10^{-26}\) cm³ s^-1, we simply set sigv = 3.

If one sets is_spike = False and typing any of the above **kwargs for spiky halo, ValueError will appear.

Now if we want to evaluate a galaxy similar to our Milky Way but \(\rho_s=100\) and \(n=3.3\). Also we wish to have spike feature, such as SMBH mass is \(10^7~M_\odot\) and strong annihilation such that \(\langle \sigma v\rangle = 13\times 10^{-26}\). We can then set

# Halo setup
rhos, n = 100, 3.3
mBH, sigv = 1e7, 13

# SN location
Rs, beta = 9.9, 0.33  # kpc, rad

# BDM properties
Tx, mx = 10, 0.1 # MeV

# Flux
t = 15*sn.constant.year2Seconds
bdmflux_customized = sn.flux(t,Tx,mx,Rs,beta,is_spike=True,mBH=mBH,sigv=sigv,neval=15000)
print(bdmflux_customized)

6.6134929121434916e-18

Coordinate transform and SN in arbitrary distant galaxy¶

snorer also provides functions for converting galactic and equatorial coordinates into off-center angle \(\beta\), see Coordinate Transoformation for discussion. This aids us to compute those SNe documented in SRcat.

For example, the Crab Neubla has \((\alpha,\delta)= (05{\rm h}34{\rm m}31{\rm s}, 22{\rm d}01{\rm m}00{\rm s})\) in equatorial coordinate based on ICRS J2000.0 frame. We can obtain \(\beta\) by sn.equatorial_to_beta. This function takes three inputs and the first two are ra and dec in string type which correspond to \(\alpha\) and \(\delta\) of the SN to be investigated. The third one GC_coord is optional. Default None will automatically refer to Milky Way center. If you have your own prefer galaxy to be studied, please specifiy as GC = [gc_ra,gc_dec] where gc_ra and gc_dec are the equatorial coordinate of the galactic center.

Additionally, sn.equatorial_to_beta will output a tuple contains three values \((\beta,\ell,b)\) where the last two indicate the galactic coordinate \(\ell\) and \(b\) of SN.

# Coordinate
crab_ra, crab_dec = '05h34m31s', '22d01m00s'
crab_beta,_,_ = sn.equatorial_to_beta(crab_ra,crab_dec)
print(f'Off-center angle of Crab Neubla is {crab_beta:.3e} rad.')

Off-center angle of Crab Neubla is 3.013e+00 rad.

Now we show a case where SN is not in the Milky Way, the SN1987a, which located in Large Magellanic Cloud. There locations are given in

# Print LMC coordinate: ra,dec,dist
print(sn.constant.LMC_coord)

# Print SN1987a coordinate: ra,dec,dist
print(sn.constant.SN1987a_coord)

['05h23m34.5264s', '-69d45m22.053s', 49.97]
['05h35m27.8733s', '-69d16m10.478s', 51.4]

Hence to get \(\beta\), we do

SN1987a_ra,SN1987a_dec,Rs = sn.constant.SN1987a_coord
LMC_ra,LMC_dec,Rg = sn.constant.LMC_coord
sn1987a_beta,_,_ = sn.equatorial_to_beta(SN1987a_ra,SN1987a_dec,GC_coord=[LMC_ra,LMC_dec])

To evaluate event, we still use sn.event but have to specify Re by Rg because the default Re = 8.5 implies the distance between Earth and Milky Way center.

mx = 0.5
beta = 0.0  # kpc, rad
SN1987a_event = sn.event(mx,Rs,beta,Re=Rg,r_cut=1e-5,neval=30000)
SN1987a_event *= (Ne * sigxe) # Assuming Ne and sigma_xe follow previously
print(f'BDM event from SN1987a in LMC is {SN1987a_event:.3e}.')

BDM event from SN1987a in LMC is 8.512e-13.
